Extension to Concrete Plinth at Douglas North Substation

Concrete Plinth | Douglas North Substation

At Douglas North substation there are several concrete plinths and other concrete works and structures. The team at MCS were tasked with adding an extension to an existing plinth, to house a steel stanchion for an open busbar. Below are some examples of the steps we had taken to construct the plinth.

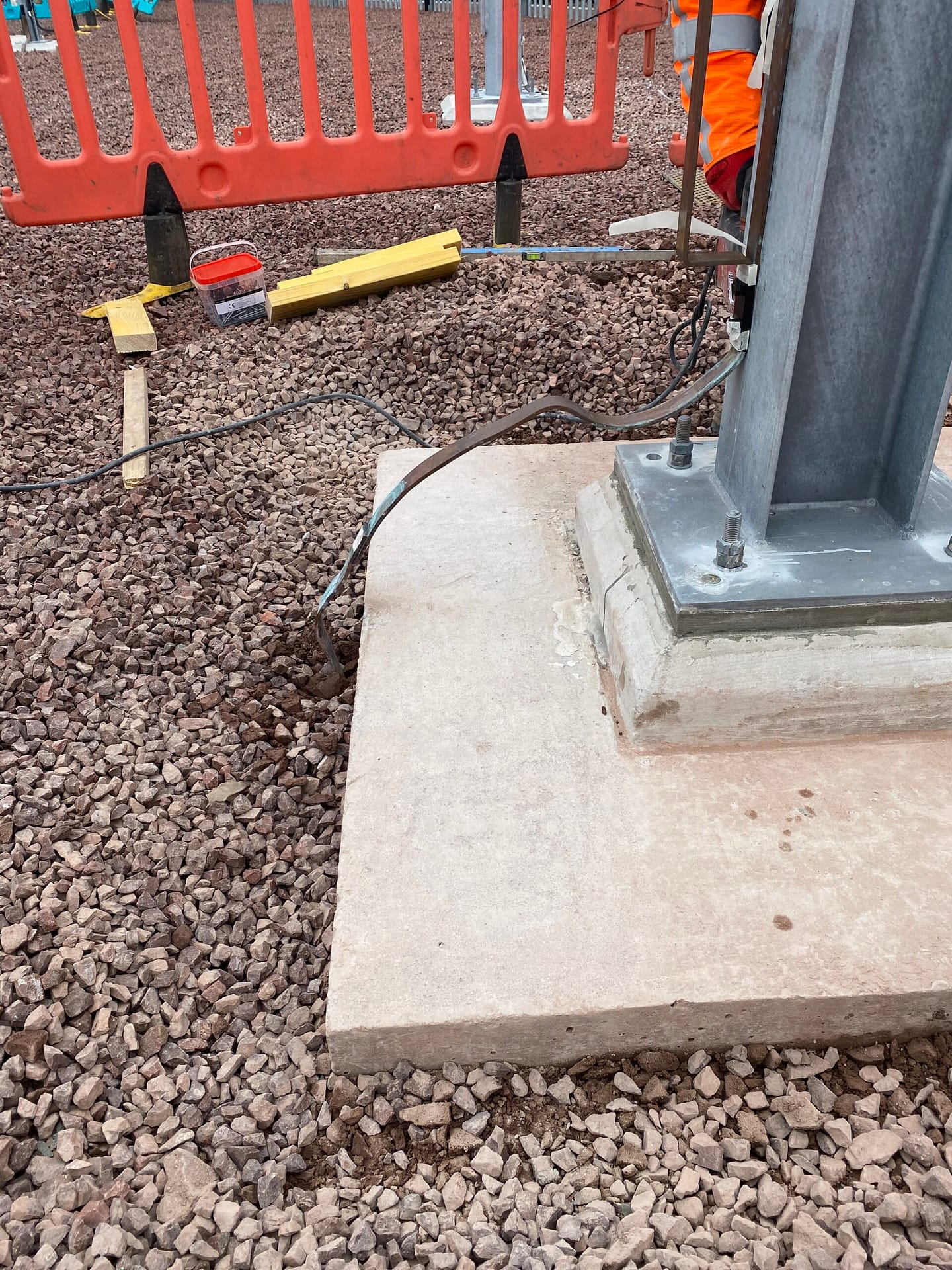

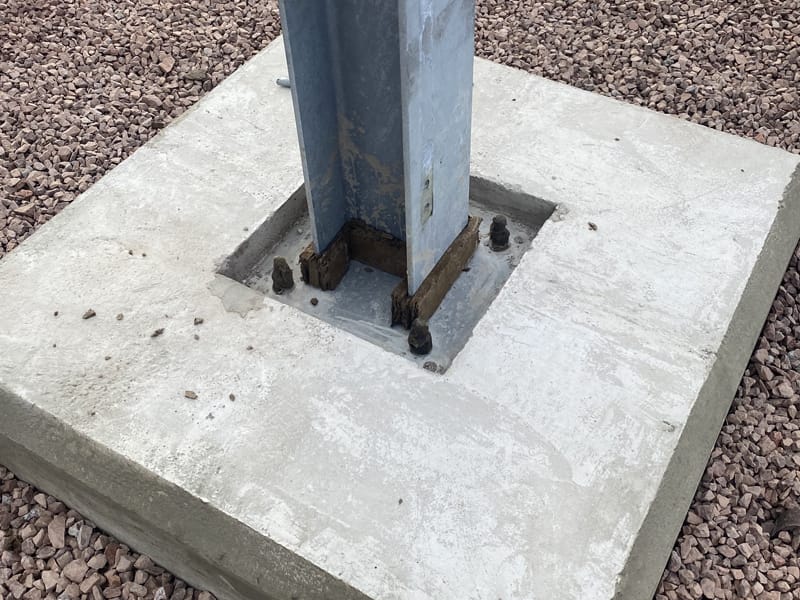

250mm surround extension to concrete plinth and shuttered, 1 layer mesh, concrete finish

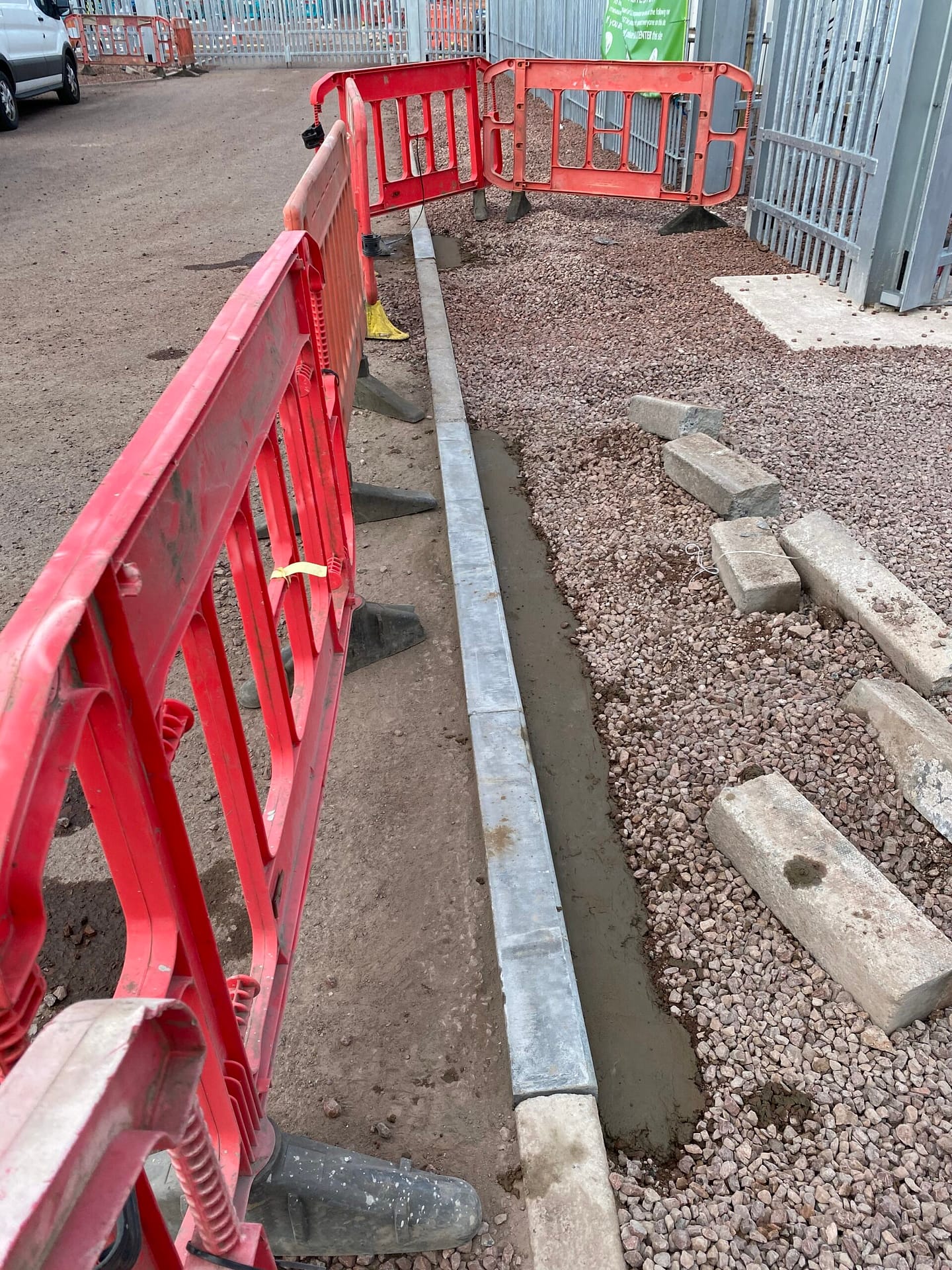

Replacement of broken kerbs

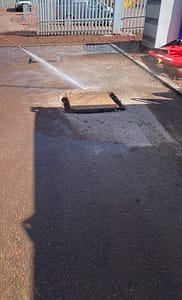

Building up several manholes to formation level and breaking out manhole covers and rebuild to suit road level for surfacing
